S 3510 (self-adhesive / not adhesive)

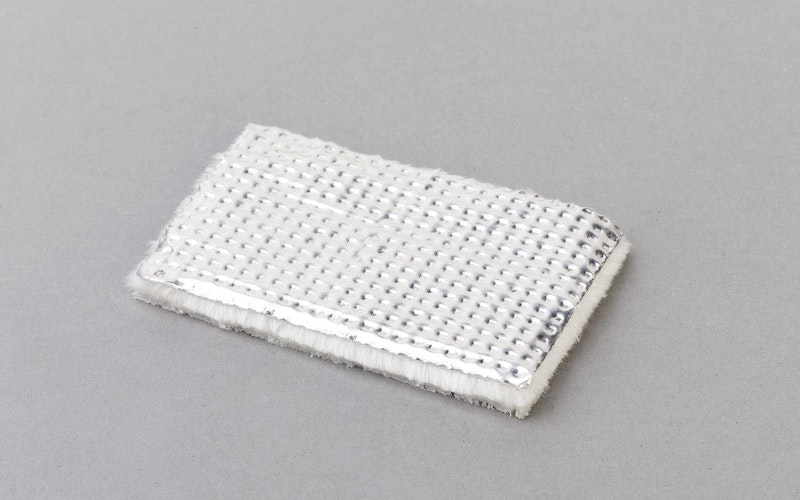

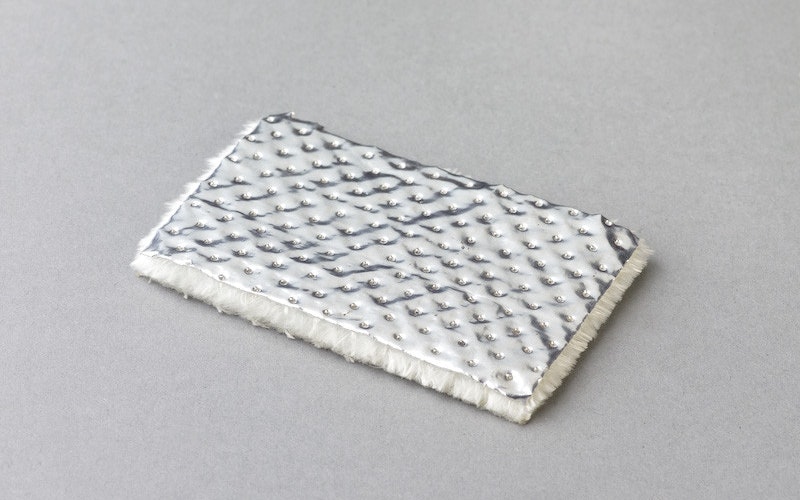

S 3510 (self-adhesive) is a glass fibre mat interwoven with a glass filament yarn, laminated with an imprinted aluminium foil (thickness approx. 100 µm).
Self-adhesive equipment with a high-quality adhesive system based on acrylate.

S 3510a (not adhesive) is a glass fibre mat interwoven with a glass filament yarn, laminated with an imprinted aluminium foil (thickness approx. 100 µm).

Main function

Heat insulation

Applications

In the engine compartments, exhaust area, catalytic converters etc.
especially in compound with the behavior of radiation heat

Processing

Self-adhesive:
The surface must be carefully cleaned from dust, grease, oil and water.
Full area adhesion has to be insured. The adhesion strength is directly dependent from the processing pressure. The material has to be pressed in firmly, e.g. using a feed roll.
Processing temperature: 18 - 25 °C

Not adhesive:
Mechanical attachment
Processing temperature: 18 - 25 °C

Storage conditions

Dry at temperatures between 18 - 25 °C
Max storage time: 6 months

Delivery forms

Standard boards 1,000 x 1,600 mm,
other sizes and cut-to-size pieces upon request.
