S 3500/-AL100 (self-adhesive / not adhesive)

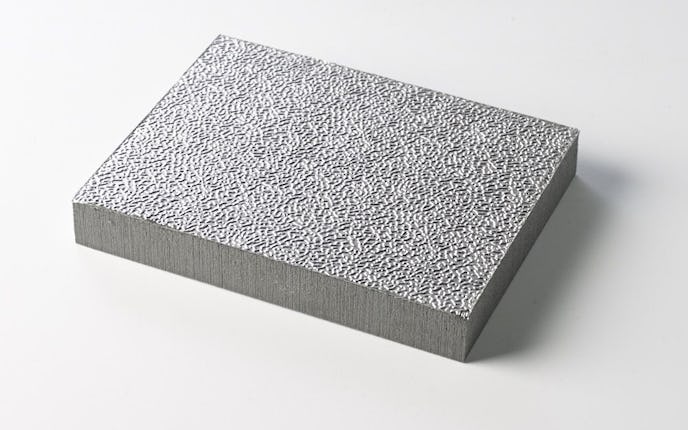

S 3500/-AL100 (self-adhesive) is a closed-cell polyethylene-foam (PE-foam), laminated with a coarse-grained aluminium foil (thickness approx. 100 µm). Self-adhesive equipment with a high-quality adhesive system based on acrylate. S 3500a/-AL100 (not adhesive) is a closed-cell polyethylene-foam (PE-foam), laminated with a coarse-grained aluminium foil (thickness approx. 100 µm).
Main function
Heat insulation
Applications
Rail vehicles, mechanical engineering, plant construction, vehicle cabs, impact protection
Processing
Self-adhesive:
The surface must be carefully cleaned from dust, grease, oil and water.
Full area adhesion has to be insured. The adhesion strength is directly dependent from the processing pressure. The material has to be pressed in firmly, e.g. using a feed roll.
Processing temperature: 18 - 25 °C
Not adhesive:
Mechanical attachment
Adhesion with liquid adhesive
Processing temperature: 18 - 25 °C
Storage conditions
Dry at temperatures between 18 - 25 °C
May storage time: 6 month
Delivery forms
Standard boards 1,000 x 2,000 mm untrimmed,
other sizes and cut-to-sizes pieces upon request.
