Thermal and Acoustic Insulation S 3911/-Tect-o-phob AL

S 3911/-Tect-o-phob AL

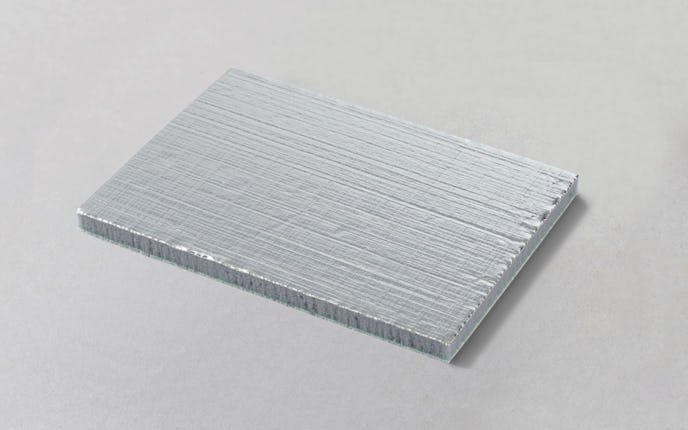

S 3911/-Tect-o-phob AL is a grey open-cell melamine resin foam, impregnated hydrophobic and oleophobic, and laminated with an aluminium foil. Self-adhesive equipment with a high-quality adhesive system based on acrylate.

Main function

Airborne sound absorption (absorption) and heat insulation

Applications

Mechanical engineering, plant construction, wagon construction, ventilation- and heating construction etc.

Not suitable for outdoor use / outdoor exposure!

Processing

The surface must be carefully cleaned from dust, grease, oil and water.
Full area adhesion has to be insured. The adhesion strength is directly dependent from the processing pressure. The material has to be pressed in firmly, e.g. using a feed roll.
Processing temperature: 18 - 25 °C

Storage conditions

Dry at temperatures between 18 - 25 °C
Max storage time: 6 months

Delivery forms

Standard boards 1,250 x 2,500 mm,
tolerance according to DIN 7715, class P3 ± 2%.
Other sizes and cut-to-size pieces upon request.

Labelling

The product is not subject to labelling according to EC directives / Ordinance on Hazardous Substances.
