M 1754

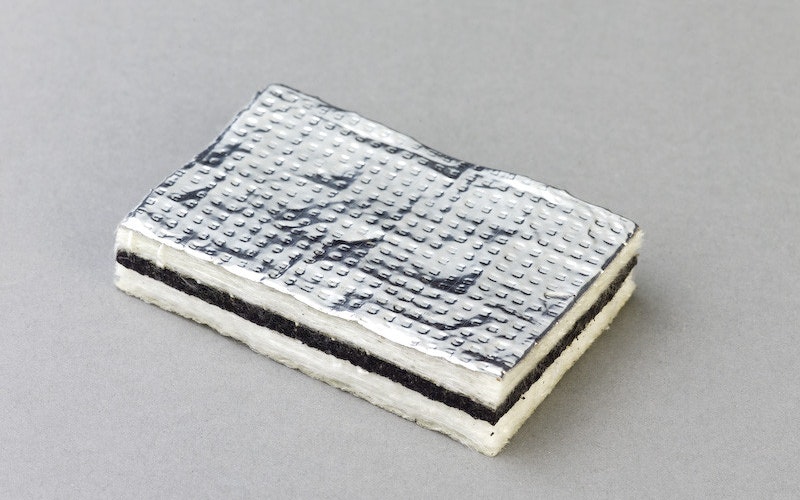

M 1754 is a glass fibre mat, one side lined with a perforated aluminium foil (thickness approx. 0.09 mm, hole diameter 1.5 mm, hole content approximately 7%), laminated on a heavy foil based on bitumen and a glass fibre mat. Self-adhesive equipment with a high-quality adhesive system based on acrylate.
Main Function
Air borne sound absorption (sound absorption) and air borne sound damping
Applications
Mechanical engineering, plant constructions, sound insulation cabins, engine compartment, exhaust pipes, catalytic converters etc.
Processing
The surface must be carefully cleaned from dust, grease, oil and water.
Full area adhesion has to be insured. The adhesion strength is directly dependent from the processing pressure. The material has to be pressed in firmly, e.g. using a feed roll.
Processing temperature: 18 - 25 °C
Storage conditions
Dry at temperatures between 18 - 25 °C
Max storage time: 3 months
Delivery Forms
Standard boards approx. 1,000 x 1,600 mm untrimmed,
other sizes and cut-to-size pieces upon request.
