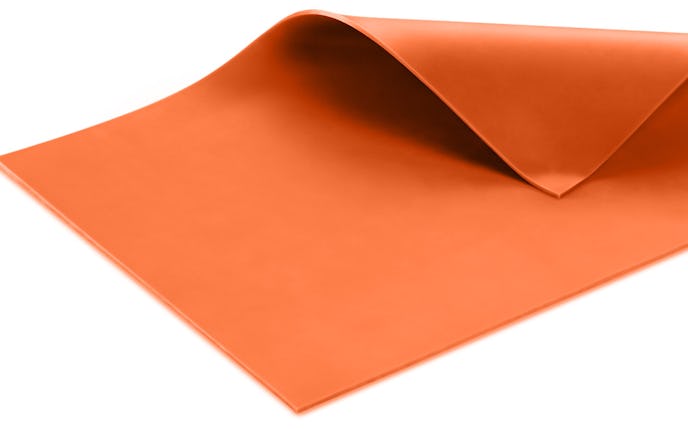

SILICONE 55 RED

Product discription and advantages

  • Silicone membranes
  • Constant quality thanks to quality management
  • Excellent elasticity
  • Long-term flexibilty
  • High temperature resistance

Area of application

Foil pressing, solid surface materials and interiors

Standard dimensions

Width 1660 mm
Material thickness 3 mm
Surface smooth/smooth
  Fabrication even beyond the standard width

Technical data

Compound A – SA 55 – 16
Colour Red
Polymer Silicone
Material hardness 55 ± 5 Shore A DIN 53 505 / ISO 7619
Thickness tolerance +/- 0.30 mm
Density/Spec. weight 1.15 +/-0.02 g/cm3 DIN EN ISO 1183 / ISO 2781
Tensile strength 8.0 N/mm2 DIN 53 504 / ISO 37
Elongation at tear 500 % DIN 53 504 / ISO 37
Rebound resilience 30 % DIN 53 512
Max. temperature 200°C
Silicone 55 Red
Any queries regarding this product?Then contact us using this form or call:Forming Solutions+49 5231 9607-41We will be happy to advise.

Contactform

DownloadsSILICONE 55 RED

Important information:
The listed test values and data are based on results of many years of development, tests and proving. A characteristics warranty and guaranteed function can’t be derived from the information given. It is within the user’s responsibility to test the selection of material in a specific application to ascertain his intended operational capability. Technical changes within the product development are subject to change.
