LAMIBRAN®

Product description and advantagese

  • Diaphragms for PV module manufacture
  • Special covering layer (black) on silicone backing (grey)
  • Bond of the two layers cannot be separated mechanically
  • Black covering layer is resistant to decomposing outgassing during lamination process
  • Durability results in longer machine running times and thus shorter set-up times
  • Constant quality thanks to quality management

Lamibran® is a specially developed membrane consisting of a silicone backing material and a unique covering layer. This covering layer is extremely resistant to outgassing and related decomposing processes of EVA films. This makes Lamibran particularly durable and increases your machine running times.

Area of application

Photovoltaik

Standard dimensions

Width 1660 - 3100 mm
Material thickness 3.2 mm
Fabrication even beyond the standard width

Technical data

Backing material Covering layer Composite material
Material Silicone Special layer Lamibran®
IRHD hardness 55 +/- 5 Shore A 80.0 +/- 5 IRHD -
Density/Spe. weight 1.16 +/- 0.02 g/qm3 1.91 +/- 0.02 g/qm3 -
Tensile strength 8.2 N/mm2 14.9 N/mm2 6.1 N/mm2
Elongation at tear 600% 184% 180%(max.)
Resilience 25% 8% 18%
Tear growth resistance (ASTM 624B) 67.7 N/mm 16.3 N/mm 47.0 N/mm
Module 100% 1.5 N/mm2 - -
Module 200% 2.2 N/mm2 - -
Module 300% 2.9 N/mm2 - -
Max. temperature 200°C - 200°C

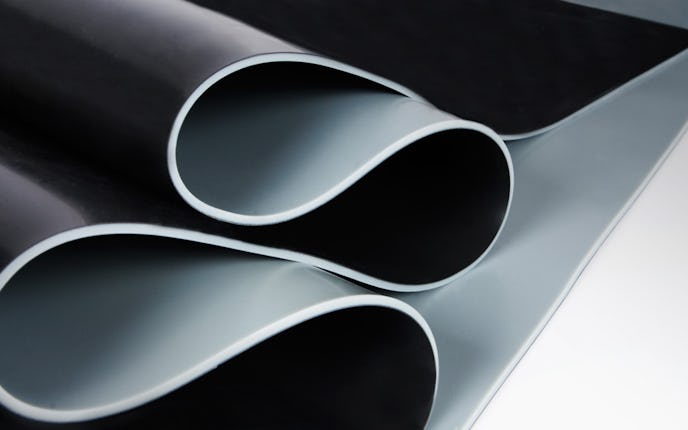

lamibran produktfoto
Any queries regarding this product?Then contact us using this form or call:Forming Solutions+49 5231 9607-41We will be happy to advise.

Contactform

DownloadsLAMIBRAN®

Important information:
The listed test values and data are based on results of many years of development, tests and proving. A characteristics warranty and guaranteed function can’t be derived from the information given. It is within the user’s responsibility to test the selection of material in a specific application to ascertain his intended operational capability. Technical changes within the product development are subject to change.
