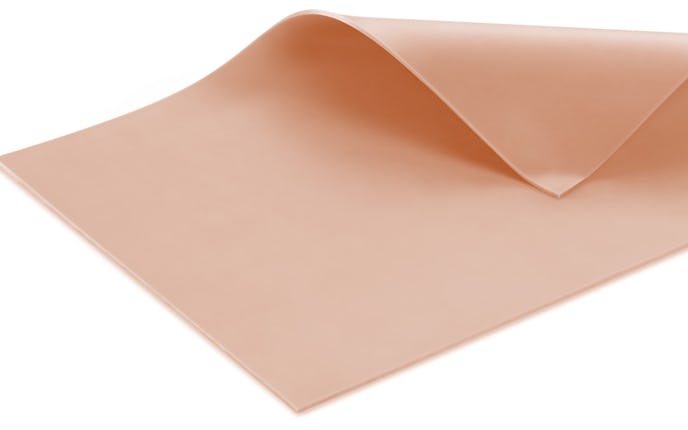

ELASTOMER 41 PEACH

Product discription and advantages

  • Elastomer membranes
  • No contact discolouration on pressed parts
  • Long-term flexibility

This high-quality natural rubber contains carefully selected components that do not cause any discolouration on the pressed plastics. Years of experience substantiate this formula.

Area of application

Foil and veneer pressing, interiors, CFRP/GRP manufacturing

Standard dimensions

Width 1900 mm
Material thickness 2 mm
3 mm
3,5 mm (up to 1700 mm)
4 mm
Surface smooth/smooth

Technical data

Elastomer TPHN -
Type of rubber NR – Natural rubber -
Colour Peach -
Material hardness 41 +/- 5 Shore A DIN 53 505 / ISO 7619-1
Thickness tolerance +/- 0.40 mm -
Density/Spec. weight 1.07 +/- 0.05 g/cm3 DIN 53 479 / ISO 2781
Tensile strength 15 Mpa DIN 53 504 / ISO 37
Elongation at tear 600 % DIN 53 504 / ISO 37
Rebound resilience 60 % DIN 53 512
Compression set at: 24h/70°C 35 % DIN ISO 815 i.A.
Max. temperature 120°C -
Elastomer 41 Peach
Any queries regarding this product?Then contact us using this form or call:Forming Solutions+49 5231 9607-41We will be happy to advise.

Contactform

DownloadsELASTOMER 41 PEACH

Important information:
The listed test values and data are based on results of many years of development, tests and proving. A characteristics warranty and guaranteed function can’t be derived from the information given. It is within the user’s responsibility to test the selection of material in a specific application to ascertain his intended operational capability. Technical changes within the product development are subject to change.
