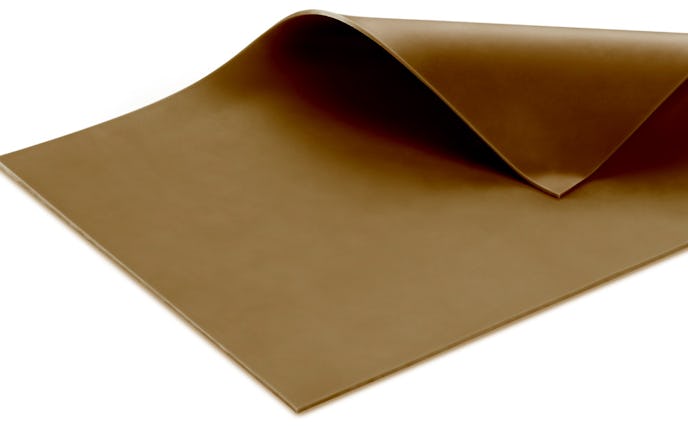

ELASTOMER 40 BROWN

Product description and advantages

  • Elastomer membranes
  • Particularly rugged
  • Long-term flexibility
  • Resistant to ozone and UV raysFor Elastomer 40 Brown we would be glad to supply you with a protective cloth provided with a silicone coating on one side.

For Elastomer 40 Brown we would be glad to supply you with a protective cloth provided with a silicone coating on one side.

Area of application

Veneer pressing

Standard dimensions

Width 1900 mm
Material thickness 4 mm
Surface smooth/smooth

Technical data

Elastomer TDBN -
Type of rubber NR – Natural rubber
Colour Brown
Material hardness 40 +/- 5 Shore A DIN 53 505 / ISO 7619-1
Thickness tolerance +/-0.40 mm
Density/Spec. weight 1.05 +/- 0.05 g/cm3 DIN 53 479 / ISO 2781
Tensile strength 25 Mpa DIN 53 504 / ISO 37
Elongation at tear 656 % DIN 53 504 / ISO 37
Rebound resilience 60 % DIN 53 512
Compression set at: 24h/70°C 25 % DIN ISO 815 i.A.
Max. temperature 120°C
Elastomer 40 Brown
Any queries regarding this product?Then contact us using this form or call:Forming Solutions+49 5231 9607-41We will be happy to advise.

Contactform

Important information:
The listed test values and data are based on results of many years of development, tests and proving. A characteristics warranty and guaranteed function can’t be derived from the information given. It is within the user’s responsibility to test the selection of material in a specific application to ascertain his intended operational capability. Technical changes within the product development are subject to change.
